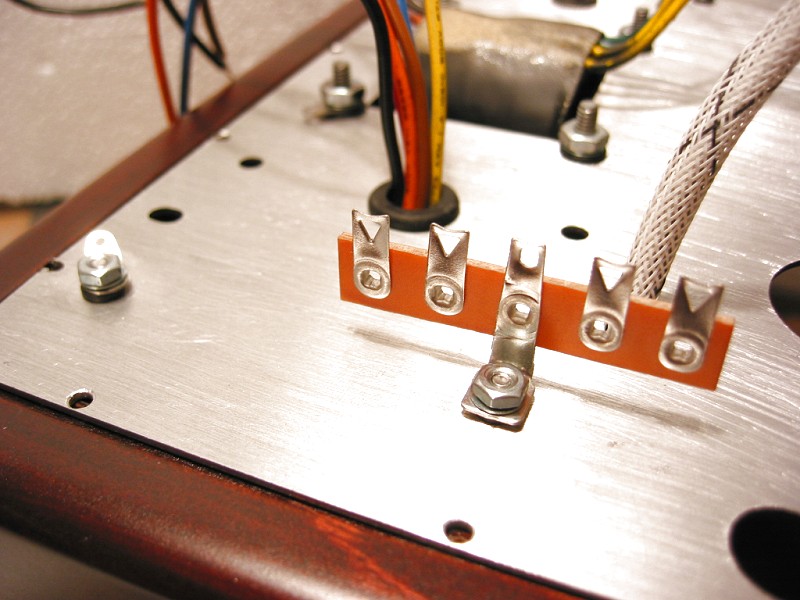

Here is the underside of the output transformer showing the back post with a solder lug on top of the shoulder washer
and a terminal strip, also on top of the shoulder washer, on the front post. Both secured with lock washers and nuts.
