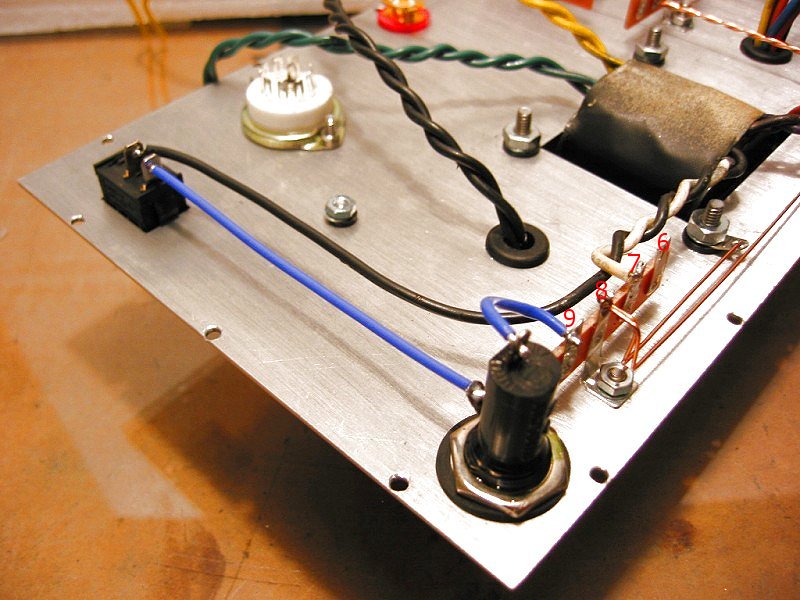

This is different from how you will wire your amp.

You would normally use terminals #9 & #10, but because I removed terminal #10 to make room for the new fuse holder,
the layout is a little different with me using terminals #7 and #9. Ground remains the same on terminal #8.

So, here the power transformer wires are twisted and wired to terminal #7 (white) and the power switch (black) center post.
Rather than later, I went ahead and wired in the external fuse holder here to terminal #9 and to the power switch rear post.
You will cover installing the kit supplied fuse holder later in the manual.

Image 3 of 52  -  103 kB
