Wardsweb's Bottlehead Paramour Build

<<-- Previous   --Index--   Next -->>

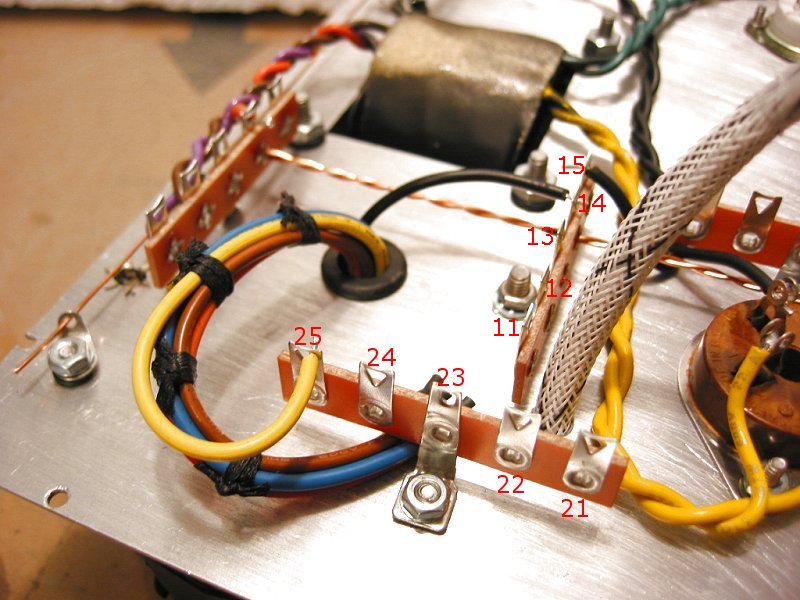

Here the Parafeed output transformer wires are routed; black to terminal #14 upper hole and yellow to terminal #25 upper hole.
The remaining wires had the ends covered with a bit of heat shrink and tied off out of the way.

By the way, the manual has you wire the secondary to the binding posts here. I chose to do this later under pages 33 & 34.

Image 8 of 52  -  99 kB
