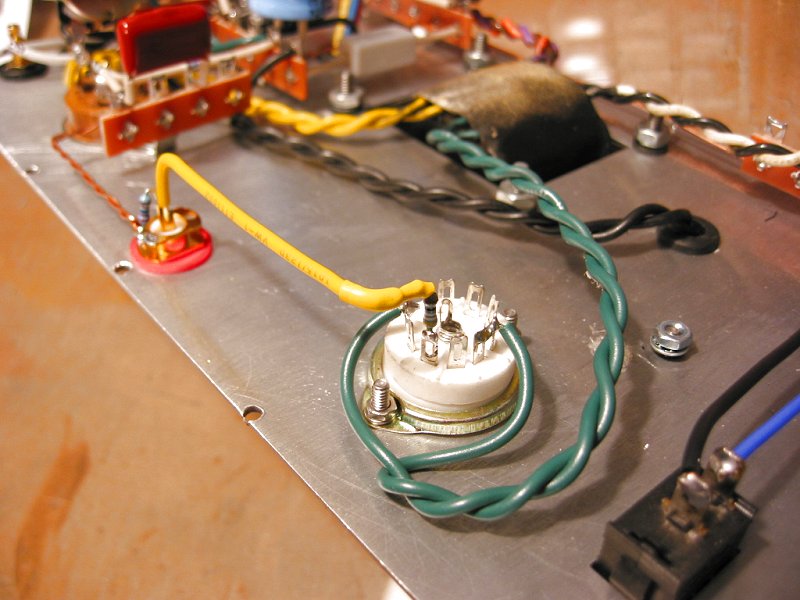

This shows the wire run from the center post of the RCA jack to the resistor soldered to terminal #B7.
I added the heat shrink over the connection. This is not supplied in the kit.

Image 38 of 52 - 83 kB
