Note I am running the C4S layout different from the manual.

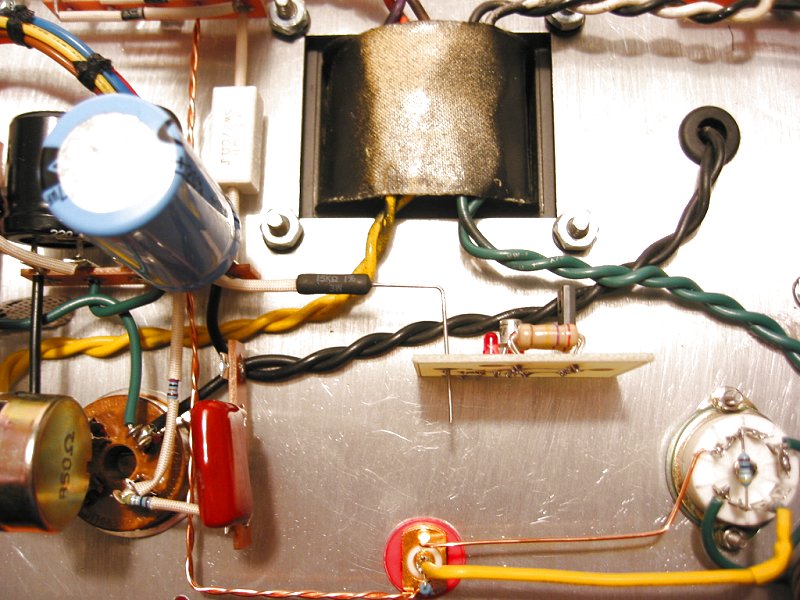

Here is the resistor from terminal #15 to the C4S board.
Shown here with fiberglas sleeve over one resistor lead that is not supplied in the kit.
