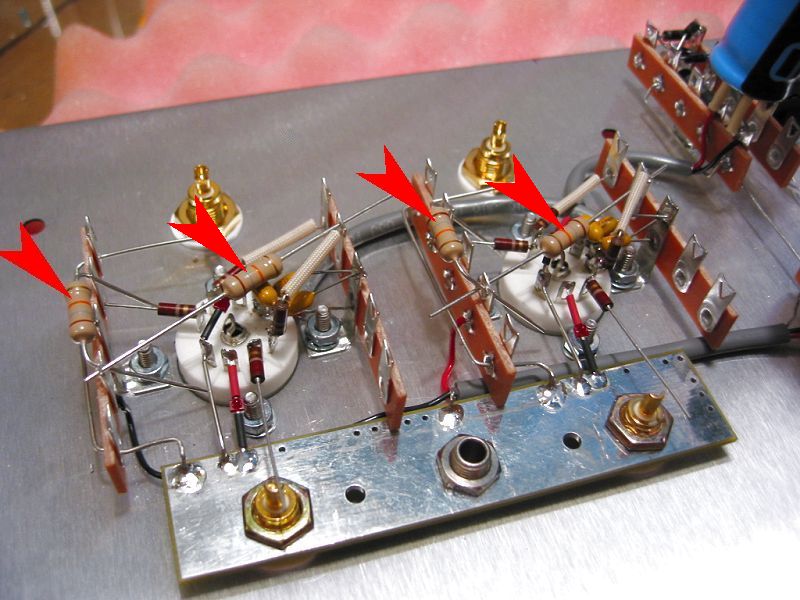

Remember those resistors I left off in the previous section (build page 48) ?
If you are working with a stock Seduction, you will need to remove those resistors before going on.
Also. realize it will be a lot easier to run your wires like the directions, over the top.

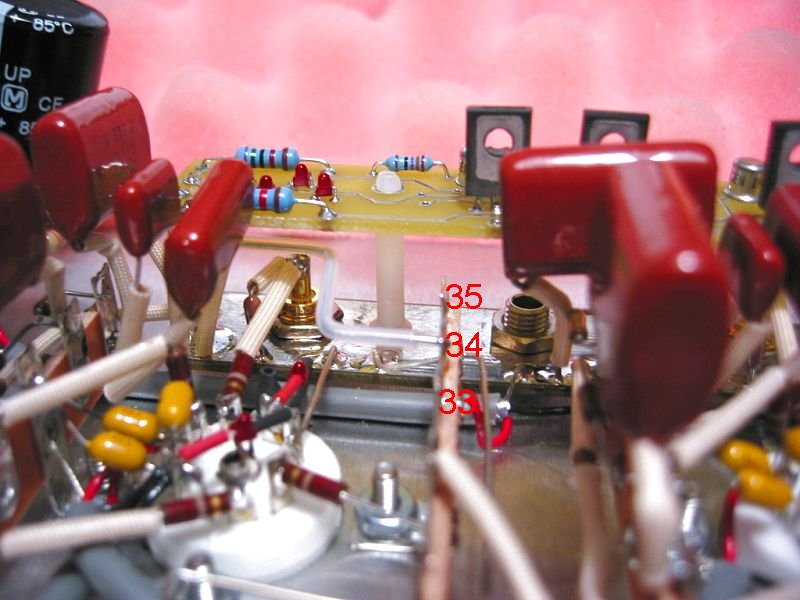

This layout is how I did it. Now a couple of pics showing wiring from the PCB to terminal 34.
