Wardsweb's Bottlehead Seduction Assembly

<<-- Previous   --Index--   Next -->>

This is the NEW transfomer that is documented in the PINK sheet and NOT in your manual.

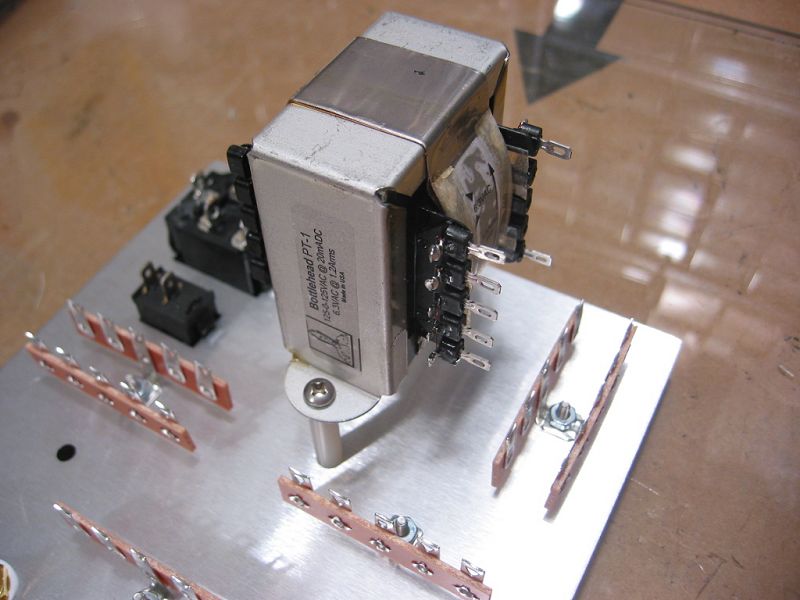

Power transformer mounted on the standoffs facing the ternminal strips.
If I had to do this again, I would think about facing it the other way, as it interfears with the parts on the strips later.
You may want to ask on the forums if there is a reason the directions say to face it this way.
Image 16 of 17  -  59 kB
