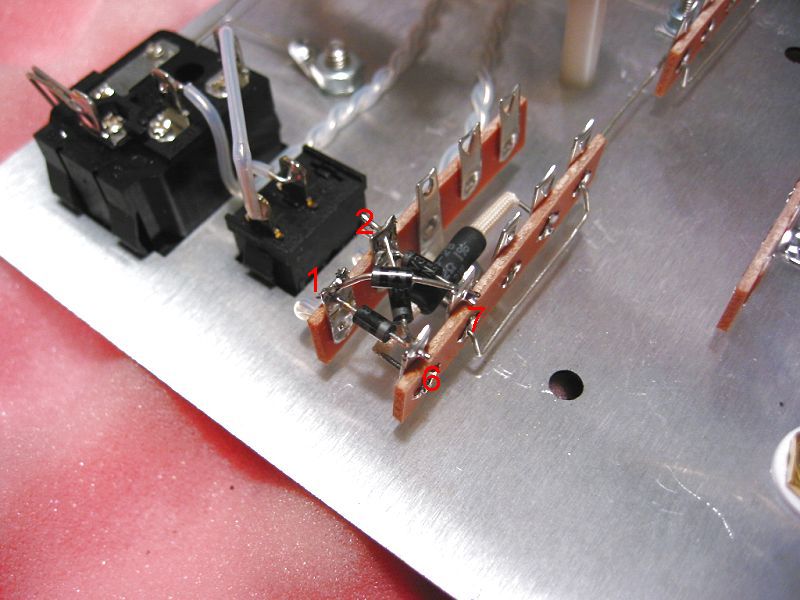

Schottky Recifier Full Wave Bridge
Pay very close attention here and TAKE YOUR TIME. This is a somewhat tedious part of the build.
Trial fit and solder one end at a time. You can trim the leads after.
Image 13 of 65 - 71 kB
