INPUT WIRING: Left Channel

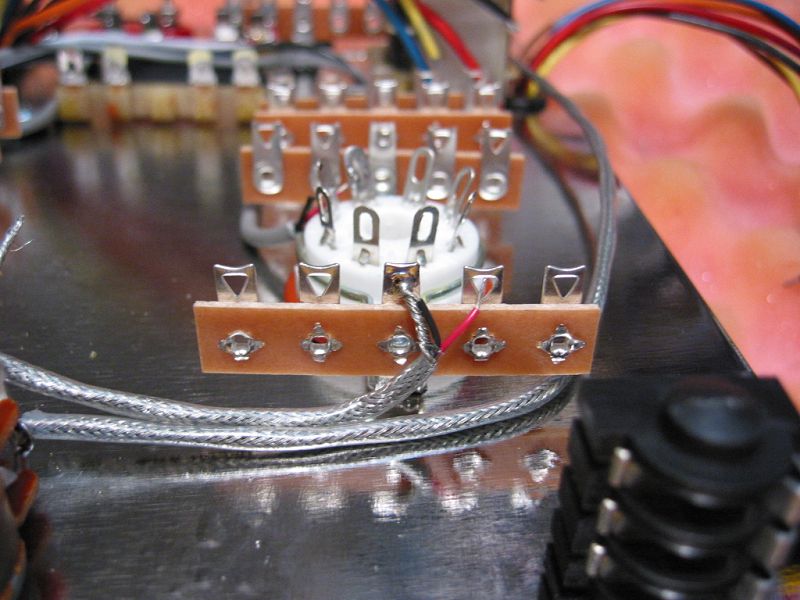

Cut a 3-1/4" lenght of shield twiste pair. Prep the cable 1/2" at both ends and strip the ends of the black and red wires 1/2".
Twist the black wire and the drain wire together at one end. Attach these twisted wires to the top hole of terminal 38 and solder.
Attach the red wire to the top hole of terminal 39. Do not solder this terminal yet.

Image 14 of 104  -  74 kB
