Wardsweb's Bottlehead S.E.X. Amp Build

<<-- Previous   --Index--   Next -->>


Cut two 6" lengths of Teflon wire and twist them together (see manual for techique)
Cut two 3 1/2" long lieces of this twisted pair and strip all ends back about 1/4".

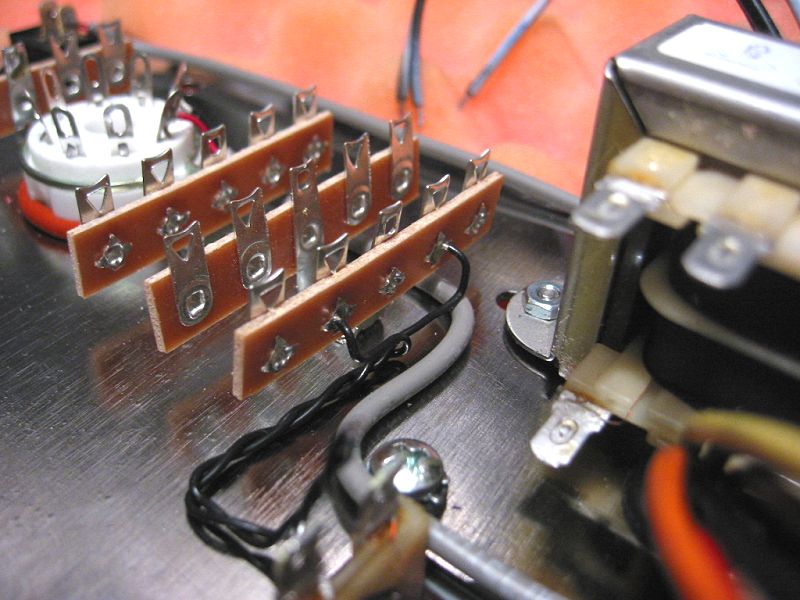

This picture shows both wires already soldered to the terminal strip.
You will proceed by using one of the 3 1/2" pieces twisted pairs soldered to terminal 7 of the power transformer.
Use a DMM on the continuity setting to verify the other end of the wire, attach that end to the lower hole of terminal 4 and solder.
