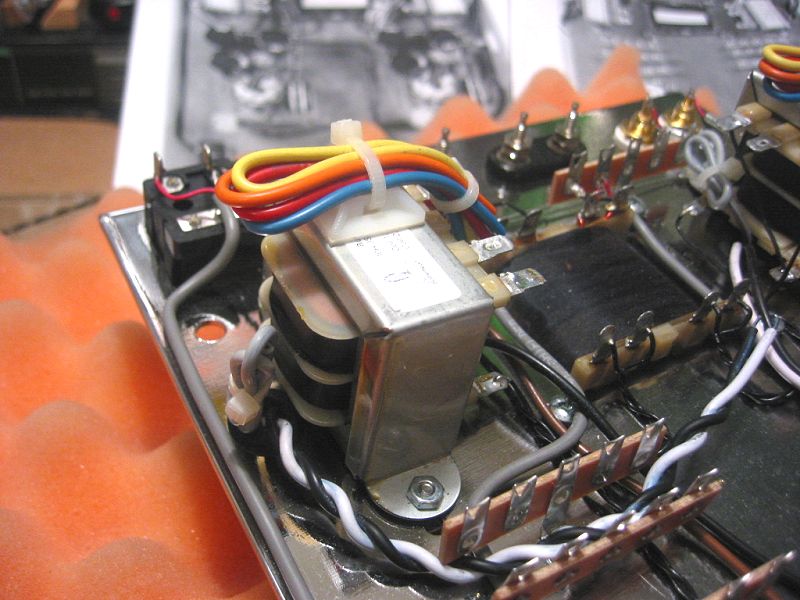

While not specifically called out in the manual here, I was cleaning up the wiring
by attaching the wires not used by the plate choke to a tie down on top of the plate choke.

I also tied up the gray wire (4 ohm) not used in the next section "Ouput Autoformer Wiring."
