Left Channel

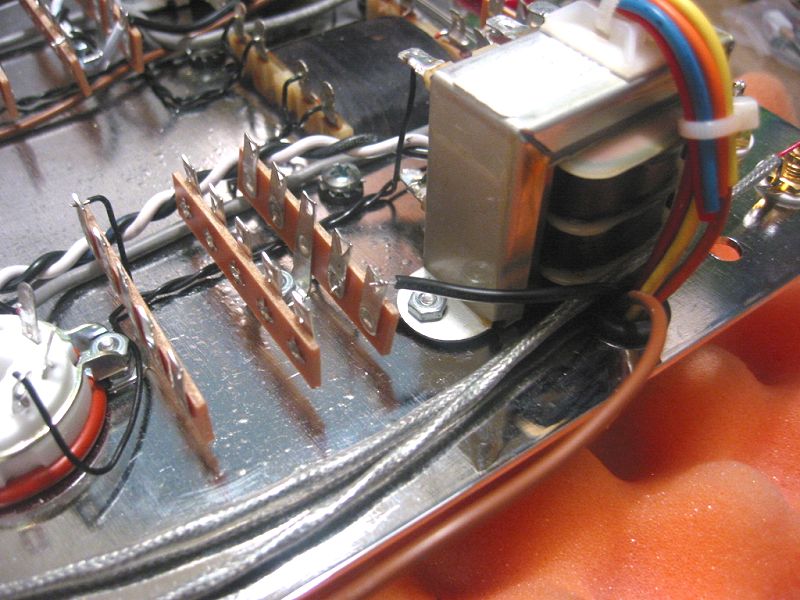

Now wire the left channel autoformer, nearest the RCA jacks.
Trim the black wire from the primary side of the autoformer to fit to reach the top hole of terminal 25.
Strip back 1/4" and attach but do not solder to the upper hole of terminal 25.
