Wardsweb's Bottlehead S.E.X. Amp Build

<<-- Previous   --Index--   Next -->>


The pictures here are a bit out of sequence, so you may want to flip forward and back a few times to understand.
The manual wires the right (red base) terminals first and the left (black base) second.
I reversed this process. Don't know why, late night, not enough coffee, brain fade...

You can follow the instuctions in the manual and reference these pics.

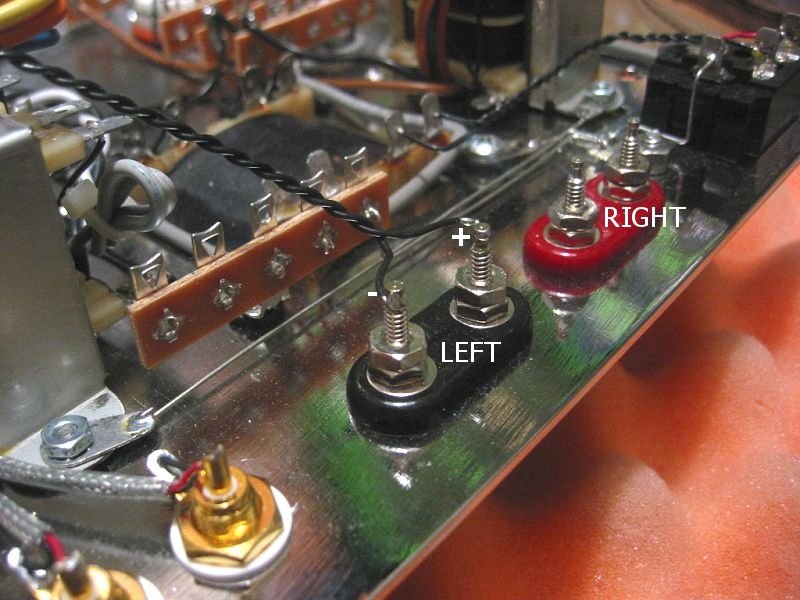

For me, I started by soldering both ends of the 12 1/2" length of twisted pair to the left channel binding posts.

Image 47 of 104  -  86 kB
