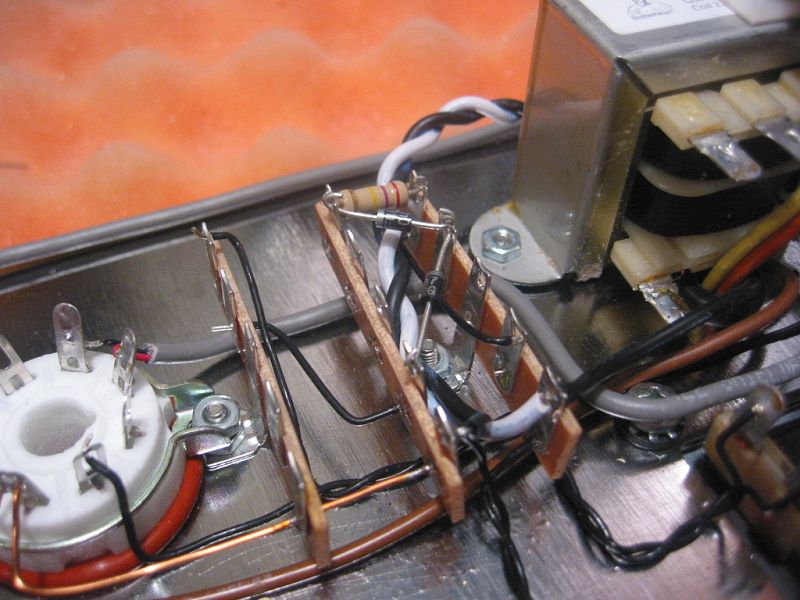

Attach the striped end lead of a UF4007 diode to the upper hole of terminal 2 and solder.
Attach the black end lead to the upper hole of terminal 9. Do Not Solder.


Image 68 of 104  -  80 kB
