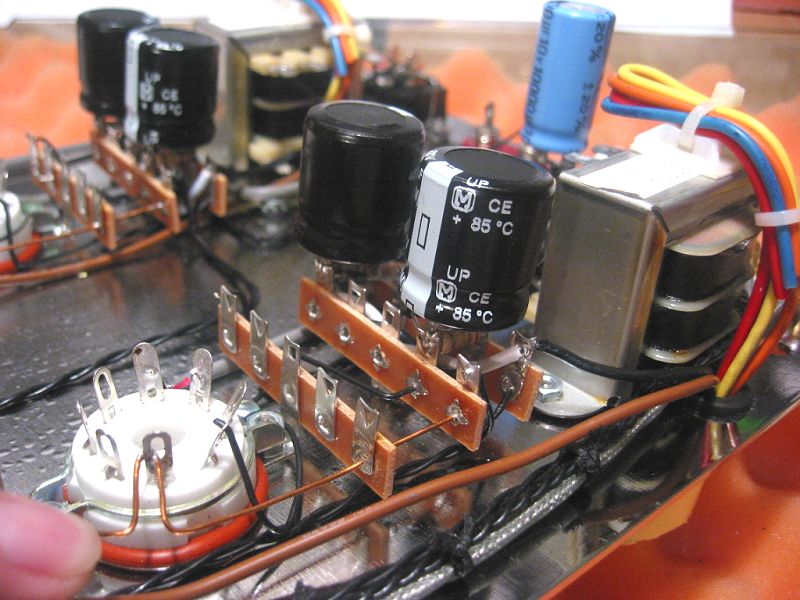

Bend the leads of a 220uF 250V capacitor out at 90 degrees away from each other.
Insert the striped side lead into the upper hole of terminal 29
Insert the un-striped side lead into the upper hole of terminal 24
You may need to spread the terminals apart to get the leads to go in the holes.
Solder both terminals.


Image 77 of 104  -  89 kB
