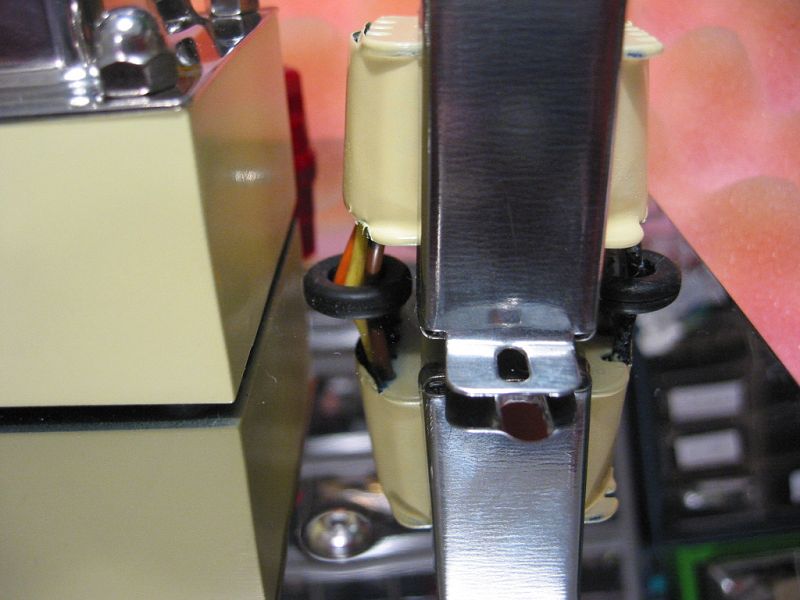

Install the four 1/2" grommets, two on eithe side of the power transformer, in the round holes.
Here is the right side.

The black, red, blue, orange, yellow and brown wires of the autoformer
feed through the grommets on the left side (next to the power transformer).
The black, gray and white wires feed through the outboard grommet.
