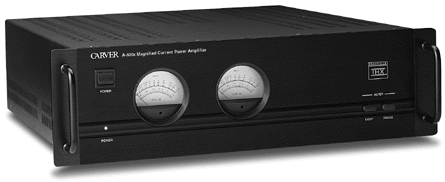

A760x THX Stereo Power Amplifier
2 Channel THX Mega Muscle Power Amp 380 W into 8 ohms
In setting out to design the A-760x Carver's engineering team drew on lessons learned in the design and building of the acclaimed Lightstar Reference amplifier, a development hailed recently in "Fi" magazine as "evidence that Carver Corporation has made a strong commitment to first-rate build quality as well as to engineering innovation." The A-760x uses Carver's newest power amplification technology "Magnified Current". This technology enables the A-760x to provide either twice the continuous voltage or twice the continuous current needed by the loudspeaker load at any given time. With more than enough current and voltage-peak or continuous- the Lightstar-inspired A-760x is the ultimate consumer amplifier on the market today.
Specs:
A-760x FEATURES
Certified by Lucasfilm, Ltd. for use in home THX audio systems Magnified
Current technology for increasing voltage and current capability Total Direct
Coupling for high damping factor at all frequencies
Each channel protected by: individual fusing, excess temperature sense,
DC fault sense, power-on delay, shorted load sense.
Minimal signal path design, with on card I/O connectors eliminating internal
interconnect cables
Gold Plated RCA Jack Connections Dual analog lighted meters with range selection
switch
Meter light On/Off switch
Individual calibrated level trim controls for each channel
Removable handles for 17" cabinet space (with trim caps)
Designed and built by Carver Corporation in Lynnwood, WA USA
A-760x SPECIFICATIONS
Frequency Repsonse: 20-20kHz +0,-0.2dB
Power Output: FTC 20hz-20khz 8ohm 380 watts per channel
4ohm 600 watts per channel 2ohm 1150 watts per channel
Bridged mono power output: 1200 watts into 8 ohms
THD: less than 0.08%
Dynamic Headroom: >1.0dB @ 8ohms both channels driven
Gain: 29.0 dB (+/- 0.5dB)
Input Impedance 47 kohms
Damping Factor: >150 typical (20hz-20 khz)
